Expansion Vessel Thorough Examination

Expansion Vessels Within Industry

Expansion vessels are pressure vessels used in closed heating, cooling, and water systems to manage changes in fluid volume caused by temperature variations. As water or other fluids heat up, they expand, increasing system pressure. Expansion vessels absorb this excess volume, preventing overpressure and protecting pipework, pumps, boilers, and other system components from damage. They play a vital role in maintaining system stability, efficiency, and safety.

Typically, an expansion vessel contains a flexible diaphragm or bladder that separates the fluid from a compressed gas, usually air or nitrogen. As the fluid expands, it pushes against the diaphragm, compressing the gas and balancing system pressure. When the fluid cools and contracts, the vessel releases the stored volume back into the system. This controlled pressure regulation helps reduce stress on components and minimises the risk of leaks or system failure.

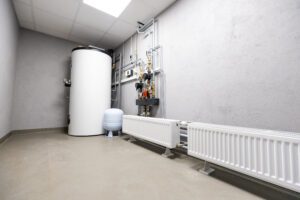

Expansion vessels are widely used in building services and construction, particularly in central heating and hot water systems in residential, commercial, and industrial buildings. They are essential components in boiler systems, district heating networks, and chilled water systems, ensuring reliable operation and consistent performance across a wide range of temperatures and loads.

Beyond building services, expansion vessels are used in industries such as manufacturing, power generation, renewable energy, and process engineering. They are commonly found in cooling systems for machinery, HVAC systems, and renewable installations such as solar thermal and heat pump systems. Overall, expansion vessels are critical for pressure control, system longevity, and safe operation across many industrial and commercial applications.

What’s Covered During Your SEIS Thorough & In Service Examination.

A PSSR (Pressure System Safety Regulations 2000) Thorough and In Service Examination of an expansion vessel is a legally required examination to ensure the vessel is suitable for further service, and safe to used as part of the pressure system. If the vessel has a pressure x volume product greater than 250 bar/litres, and a relevant fluid is present within the system, or the vessel holds steam at any pressure, a written scheme of examination must be drawn up and certified. The competent person must carry out the examination in line with the written scheme of examination. Below is a details description of what is typically covered during a Thorough and In Service Examination;

 General Examination

Verification that the vessel complies with it’s manufacturers specifications and current legislation. Check all relevant documentation such as;

  • CE/ UKCA conformity documents.
  • Maintenance records.
  • Previous hydro-static test pressure certificates.
  • Previous reports of thorough examination.
  • The written scheme of examination.
  • Confirmation of all vessel markings (serial number, safe operating limit, design code, vessel volume etc).

 Structural Integrity

  • Base of the vessel check supporting feet and ensure vessel is securely affixed.
  • Vessel shell check for no mechanical damage, erosion or excessive corrosion.
  • Guarding (if fitted) check the integrity of any guarding covering any moving parts.
  • Mounting of system protective devices (safety valves on the water side) check for correct fitment and security.
  • External examination of the vessel vessel walls to be checked for corrosion, pitting or wastage and supplemented with ultrasonic thickness readings.
  • Verify pre-charge within the diaphragm test the pre-charge pressure is within the diaphragm.

 System Protective Devices

  • Safety valve remove from pipework associated with vessel, check the threads, the valve face, check for damage and test for calibration in line with manufacturers recommendations (typically every 4 – 5 years).

 Supplementary Tests

The competent person may use any, or all of the following supplementary tests to supplement their examination.

  • Hydro-static pressure test.
  • Ultrasonic thickness readings.
  • non-destructive testing (NDT) by means of ultrasonic flaw detection, radiographic, magnetic particle or dye penetrant.

Common Defects:

  • Manufacturers name plate illegible or missing.
  • diaphragm discharged of all pre-charge pressure.
  • Safety valve damaged or out of calibration.

 Documentation and Reporting

After the inspection, the competent person will issue a PSSR Thorough Examination Report. This must include:

  • Date of the examination
  • Details of the equipment inspected
  • Findings, including any defects
  • Recommendations or required actions
  • Date of next examination due
  • Statement on whether the equipment is safe to continue using

If any serious defects are found that pose immediate danger, they must be reported to the duty holder and the enforcing authority (e.g., HSE) immediately.

 Summary

An expansion vessel PSSR inspection ensures that your pressure systems are safe, compliant, and fit for use. It helps prevent accidents caused by damaged vessels, poor equipment practices and ineffective system protective devices. While it does not replace regular maintenance, PUWER and PSSR inspections are a crucial legal requirement for keeping pressure safe and avoiding costly breakdowns or incidents.

Expansion Vessel FAQ's

Yes — where an expansion vessel forms part of a pressure system exceeding the pressure x volume threshold, it falls under the Pressure Systems Safety Regulations 2000 (PSSR 2000). In such cases, a statutory Thorough Examination is legally required.

An expansion vessel (also known as an expansion tank) is a pressurised component used in heating, chilled water, and closed-loop systems. It absorbs changes in fluid volume caused by temperature fluctuations, preventing excessive system pressure.

Expansion vessels contain pressurised gas (usually nitrogen or air) separated from system water by a diaphragm or bladder. If the vessel fails, it can release stored energy rapidly. For this reason, qualifying systems must comply with the Pressure Systems Safety Regulations 2000.

A Written Scheme of Examination is a legal document required under PSSR. It details:

  • Which parts of the expansion vessel must be examined

  • Whether internal or external inspections are required

  • Inspection frequency

  • Maximum allowable working pressure

  • Safety valve and pressure relief arrangements

Operating an in-scope vessel without a WSE is unlawful.

A statutory PSSR inspection may include:

  • External visual inspection of the vessel shell

  • Inspection for corrosion, deformation, or damage

  • Examination of welds and seams

  • Assessment of mounting brackets and supports

  • Verification of pressure ratings and identification plates

  • Inspection and testing of associated safety valves and pressure relief devices

  • Checking pre-charge pressure (where applicable)

  • NDT techniques – ultrasonic thickness readings

The competent person determines whether the vessel is safe to remain in service.

No. Routine servicing checks system performance and pressure levels. A Thorough Examination under the Pressure Systems Safety Regulations 2000 focuses on structural integrity, safety devices, and compliance with statutory requirements.

Both may be required for full compliance.

The inspection must be conducted by a competent person with appropriate knowledge of pressure systems. This is typically an independent inspection engineer or specialist inspection body.

Why Expansion Vessels Matter For You & Your Business.

Why PSSR2000 Thorough & In Service Examinations Matter

PSSR2000 thorough & in service examinations are a legal requirement in the UK for all pressure systems used at work and must be carried out in line with their written scheme of examination, and for good reason. These inspections ensure that pressure systems and their equipment, such as air receivers, pressure vessels, steam boilers, and other vessels containing a relevant fluid are safe to use, and fit for purpose. The nature of pressure systems and their associated vessels means that equipment failure can lead to catastrophic consequences, including serious injury, fatalities, and significant damage to property. By carrying out regular, scheduled thorough and in service examinations by a competent person, businesses can identify failure mechanisms, structural damage, or faulty system protective devices before they result in an incident.

Pros of Getting a Thorough and Working Examination in line with PSSR2000

Legal Compliance and Risk Reduction: The most obvious advantage is staying compliant with health and safety law. Compliance avoids potential legal action, fines, or even prosecution. More importantly, it drastically reduces the risk of workplace accidents caused by lifting equipment failure.

Improved Safety Culture: Regular inspections foster a proactive safety culture within the organisation. Employees are more likely to trust equipment and feel safe in their work environment when they know thorough checks are in place.

 Extended Equipment Lifespan: Regularly maintained and inspected equipment typically lasts longer. Examinations can identify early signs of damage or fatigue, allowing for preventative maintenance that avoids costly replacements or repairs.

 Insurance and Liability Protection: Insurers may require evidence of PSSR compliance in the event of an incident. Without valid inspection records, insurance claims could be denied or reduced, leaving the business liable for damages.

 Operational Efficiency: Detecting potential issues before they lead to equipment failure helps prevent unscheduled downtime. This keeps operations running smoothly and avoids the knock-on effects of delayed projects or interrupted workflows.

Cons of Failing to Carry Out PSSR Thorough and Working Examinations

 Legal and Financial Consequences: Failing to comply with PSSR can result in enforcement action from the Health and Safety Executive (HSE), including improvement notices, prohibition notices, fines, or even prosecution. Legal battles and associated costs can be financially crippling.

 Increased Risk of Accidents: Equipment that hasn’t been thoroughly examined is far more likely to fail. Such failures can lead to injuries or fatalities, particularly in high-risk environments like construction or manufacturing. Beyond the human cost, the reputational damage to a business can be severe and long-lasting.

 Higher Repair and Replacement Costs: Neglecting inspections can allow minor issues to develop into major faults. These may require costly emergency repairs or complete equipment replacement, expenses that could have been avoided through routine examinations.

 Loss of Business and Clients: Clients often expect their contractors or suppliers to uphold strict safety standards. A failure to meet legal obligations like PSSR can result in lost contracts or blacklisting from future work, especially in regulated industries.

 Increased Insurance Premiums or Invalidated Coverage: As mentioned, insurers may increase premiums or deny coverage entirely if a business can't provide evidence of up-to-date PSSR compliance, placing a heavier financial burden on operations.

PSSR thorough and in service examinations aren’t just a box-ticking exercise - they are an essential component of a responsible, safety-first approach to using pressure systems. The benefits of compliance are wide-ranging, from protecting human life to reducing costs and maintaining operational integrity. Conversely, the risks of neglecting these inspections can be devastating on multiple levels.

Key Points;

 Examinations must be carried out by a competent person - A competent person is someone with the right practical and theoretical knowledge and experience to conduct thorough examinations of pressure systems and their vessels and system protective devices.

Regulation 9 - Examinations in line with the written scheme

Key Points;

  • Examinations of pressure systems which has a pressure x volume product of over 250 bar/litre, must have a written scheme of examination drawn up.
  • The competent person must carry out the examination of the pressure system, in line with the written scheme of examination, using pressure system guidance and documentation to supplement their examination.

Key points;

 Examination Periods

  • Examinations must be carried at set intervals noted in the written scheme of examination.
  • SAFed guidance PSG 01 lays out guidance for the competent person as to when certain types of vessels should be examined. The vessel inspection periods can be determined by their process vessel category classification.



Key points;

A report of thorough examination must contain the following

  • The date the examination was undertaken, where the examination was undertaken and when the next examination is to take place.
  • Means of identifying the pressure system (Safe operating limit, serial number, plant number, vessel volume, vessel location etc).
  • Any findings, comments, defects and repairs noted by the competent person.
  • Defects and repairs highlighting imminent danger must be reported to the relevant authority (HSE) within 28 days.
